Ideal solution

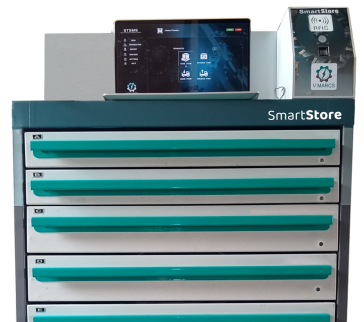

V MARCS Smart cabinets are ideal for the storage of cutting tools such as drills, taps, indexable inserts, milling cutters and measuring instruments.

Supports i4.0 requirements

V MARCS Smart cabinets provide lot of storage in a less space. Our cabinet gives fast & easy access to tools and equipment supporting latest i4.0 requirements.

Ergonomic design

Drawer height & pocket size options ensure that you have an ideal solution for your needs. The stored items are at viewing height & easy to reach.

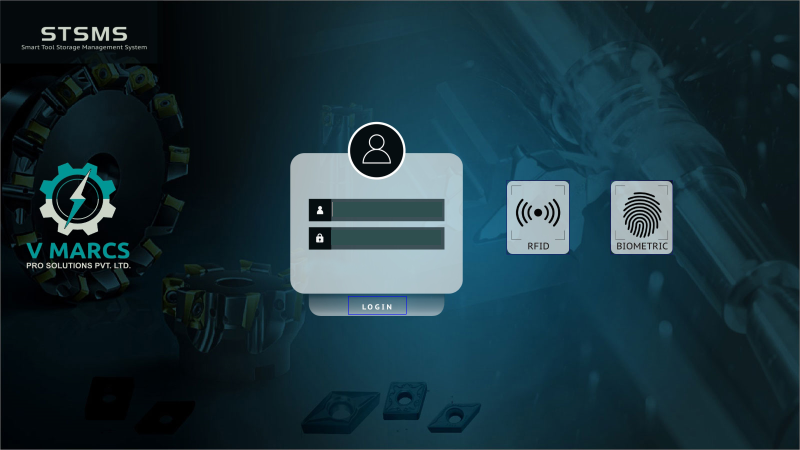

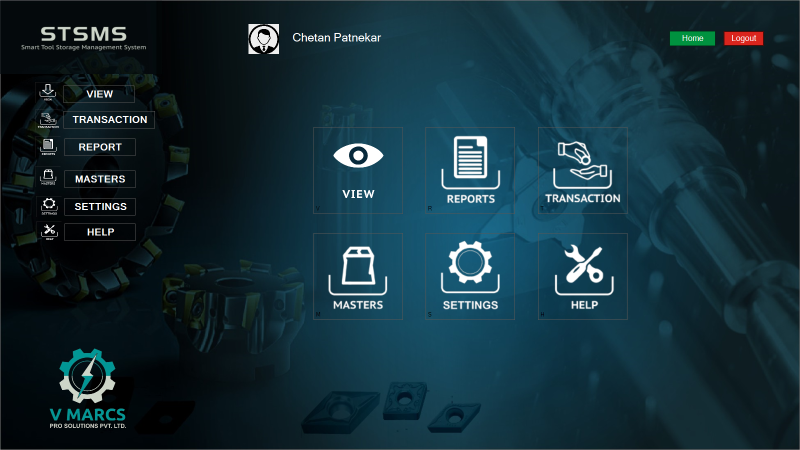

PROPRIETARY SOFTWARE

STSMS :

Smart Tool Storage Management System

CLICK ON IMAGE FOR ENLARGED VIEW

Features

V MARCS Smart cabinets provide lot of storage in a less space. Our cabinet gives fast & easy access to tools and equipment supporting latest i4.0 requirements.

SECURED ACCESS

Secured user access with RFID card & login credentials / Biometric

MORE STORAGE

More storage space in less floor area

BULK ISSUE

Bulk issue as per tool list

(Bill of Material)

ALERTS

Re-order level intimation

REPORTS

Variety of reports and accountability

AVAILABILITY

Tools are available all the time

COLLABORATION

Interface with any ERP

USER FRIENDLY

User-friendly & smooth operation

Technical details

Dimensions : 715 mm wide x 805 mm depth

Cabinet heights : 1530 mm , 1340 mm

Drawer heights : 75 & 100 mm

Pocket sizes :

99x67, 129x67, 178x67, 178x87, 278x67, 278x87, 376x87 mm

No. of Pockets per drawer : 30, 24, 18, 15, 12, 10

Max. load : 75 Kg per drawer

Lock type : Drawer & pockets with electronic lock

Operating voltage : 1Ph, 230V AC
